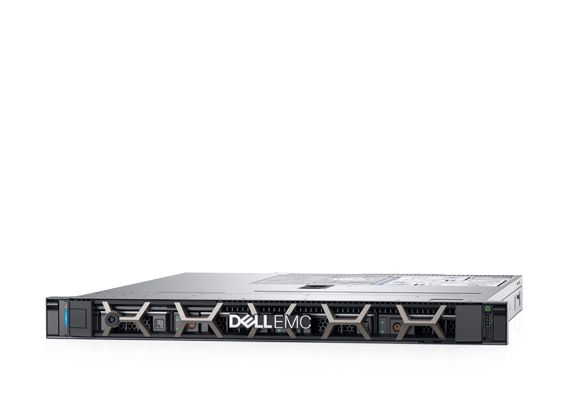

Dell R340 7834-PE Poweredge Rack Tower Server

Tech Specs & Customization
Processor
Up to one Intel® Xeon® E-2200 product family processor with up to 8 cores per processor
Up to one Intel® Pentium® G5420 processor up to 2 cores per processor
Up to one Intel® Core i3® 9100 processor up to 4 cores per processor
Up to one Intel® Celeron® G4930 processor up to 2 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor
Microsoft® Windows Server® LTSC with Hyper-V (2016 and 2019)
Oracle® Linux
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Bezel
Optional security bezel

Memory*
DIMM Speed
Up to 2666 MT/s

Memory Type
UDIMM

Memory Module Slots
4 UDIMM slots

Maximum RAM
UDIMM 64GB
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish

Consoles
OpenManage Enterprise
OpenManage Power Center

Mobility
OpenManage Mobile

Tools
Dell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator

OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter

OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies
350W Platinum
550W Platinum
Hot plug power supplies with full redundancy option
Storage Controllers
Internal Controllers
PERC H330, H730p, HBA330

External Controllers
12Gbps SAS HBA

Software RAID
S140

Internal Boot
Boot Optimized Storage Subsystem (BOSS):
2 x M.2 240GB (RAID 1 or No RAID)
1 x M.2 240GB (No RAID only)

Internal Dual SD Module (IDSDM)*:
2x microSD (16GB, 32GB or 64GB)
1x microSD (16GB, 32GB or 64GB)
Rack Support
ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).

Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.

Storage
Front Bays
Up to 8 x 2.5” hot-plug SAS/SATA (SSD)
Up to 4 x 3.5” hot-plug SAS/SATA (SSD)
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
I/O and Ports
Network Options
2 x 1GbE LOM

Front Ports
1 x Dedicated iDRAC direct micro-USB
1 x USB 2.0

Rear Ports
1 x Serial
2 x USB 3.0
1 x VGA

Internal Ports
1 x USB 3.0
Slots
PCie
2 x PCIe Gen3 slots
Form Factor
1U Rack Server

Dimensions & Weight
Width
434.0mm (17.1″)

Depth
595.6mm (23.5″)

Weight
13.6kg (29.9lbs.)
*Dimensions do not include bezel
